CubeSat Mission Software & On-Board Computer

PROJECT OVERVIEW

Building the Embedded System Behind an Autonomous CubeSat

Violet is the New Brunswick CubeSat developed as part of the Canadian CubeSat initiative to support scientific research related to the Earth's ionosphere and space weather.

Operating a CubeSat requires much more than running a single application. The spacecraft must coordinate multiple embedded subsystems, execute scheduled mission operations, collect and store scientific data, communicate with the ground station, monitor its own health and respond to faults.

My doctoral research focused on the embedded platform required to support these operations, including the on-board computer, mission software, inter-subsystem communication, GNSS payload integration and the FlatSat environment used for system-level testing.

ENGINEERING SCOPE

What I Developed

The project covered the complete embedded stack, from custom electronics and low-level firmware to real-time software, spacecraft networking and hardware-in-the-loop integration testing.

01

Mission Software

Designed and implemented a layered embedded mission-software architecture in C using FreeRTOS.

02

On-Board Computer

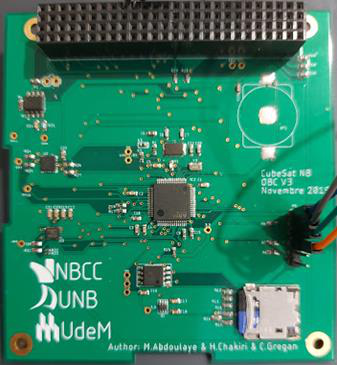

Developed a custom STM32F405-based OBC platform for executing the mission software and coordinating spacecraft operations.

03

Communication Board

Developed and integrated an STM32F407-based communication subsystem supporting the CubeSat communication architecture.

04

CSP & CAN

Implemented CubeSat Space Protocol (CSP) communication between embedded subsystems using the spacecraft CAN network.

05

GNSS Payload

Developed a C library and carrier-board integration for communicating with the OEM7 GNSS receiver.

06

FlatSat & CLI

Developed test infrastructure and CLI tools for commanding subsystems, debugging and analyzing results during integration.

FLIGHT SOFTWARE

Layered Mission Software Architecture

The flight software was organized into five layers to separate hardware-specific code from communication services and mission-level functionality. This structure made the system easier to develop, test and extend as additional CubeSat subsystems were integrated.

05

Application Layer

Mission operations · Telemetry · Housekeeping · Subsystem operation · Software installation & updates

04

Communication Layer

CubeSat Space Protocol (CSP) · Inter-subsystem networking

03

Real-Time Operating System

FreeRTOS · Tasks · Scheduling · Synchronization

02

Driver Layer

Hardware-dependent software · RTC · Storage · Sensors · Interfaces

01

Peripheral Layer

OBC · Communication · Payload · Sensors · CubeSat subsystems

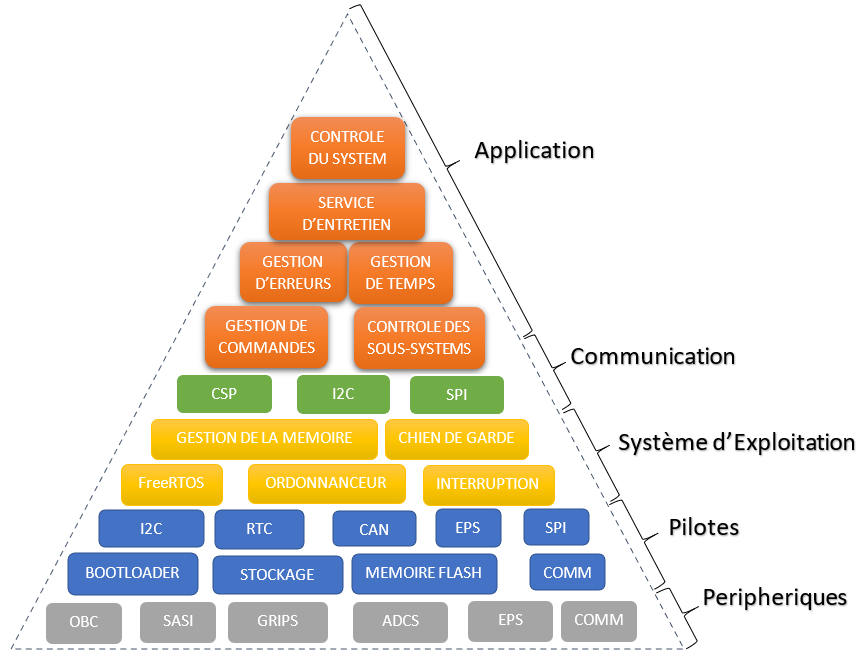

Five-layer CubeSat mission software architecture — Proposed mission software architecture. Source: Doctoral thesis, Figure 2.4.

EMBEDDED COMMUNICATION

Distributed Communication with CSP over CAN

Violet consists of multiple embedded subsystems that must exchange commands, telemetry and mission data reliably. Rather than treating each interface independently, the spacecraft uses a common communication architecture.

CubeSat Space Protocol (CSP) was implemented and tested on the STM32F405 on-board computer and the STM32F407 communication board, with CAN serving as the primary inter-subsystem network.

This allowed the OBC to communicate with other spacecraft subsystems through a consistent packet-based interface while additional interfaces such as I²C were used where required.

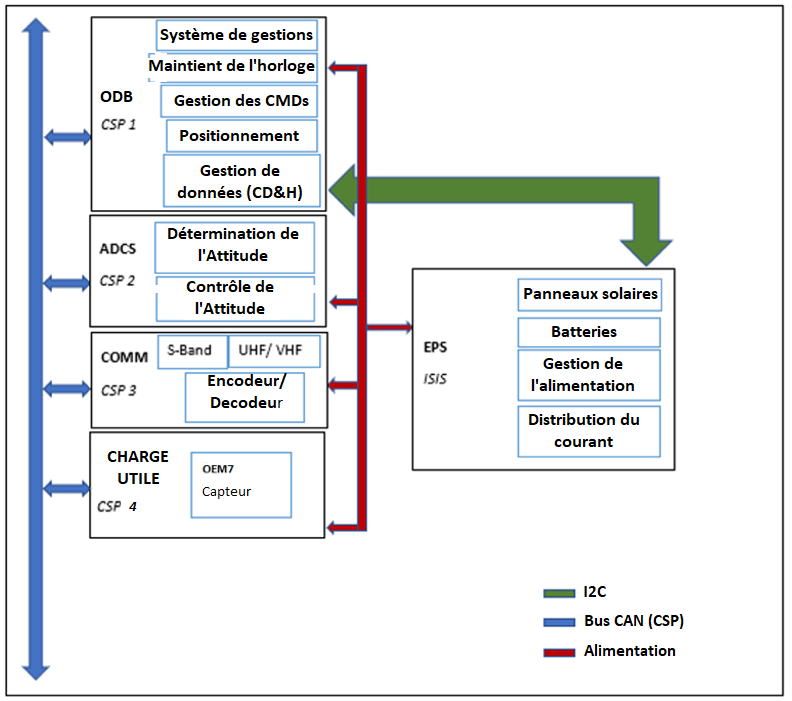

CubeSat NB Violet system bus architecture showing OBC, communication, payload, ADCS and EPS subsystems — CubeSat bus architecture developed during the research. Source: Doctoral thesis, Figure 2.3.

RELIABILITY

Fault Detection & Recovery

The OBC periodically requests telemetry from spacecraft subsystems and evaluates the returned values against operating rules. When an abnormal condition is detected, the software identifies the fault, enters the appropriate failure mode and attempts recovery before returning the spacecraft to normal operation.

Monitor Collect subsystem telemetry

→

Detect Identify abnormal values

→

Evaluate Apply fault rules

→

Recover Execute recovery strategy

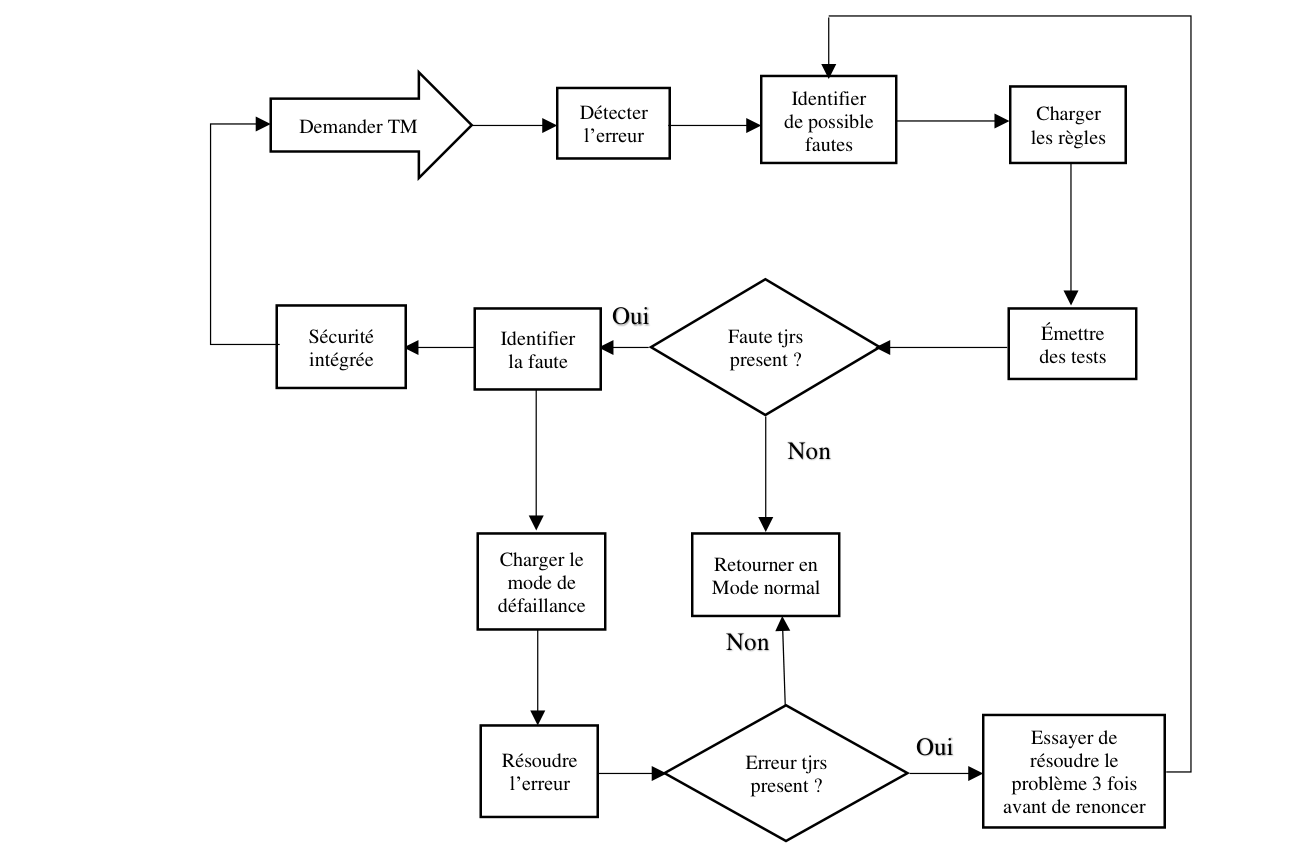

CubeSat telemetry monitoring and fault recovery algorithm — Fault detection and recovery process based on subsystem telemetry, fault rules and recovery attempts. Doctoral thesis, Figure 3.4.

INTEGRATION & VALIDATION

FlatSat Test Platform

Before final spacecraft integration, the embedded subsystems were connected through a FlatSat test platform. This made it possible to run the mission software on real hardware while keeping each subsystem physically accessible for debugging and measurement.

The configuration connected the STM32F405 OBC, STM32F407 communication board and OEM7 carrier board. It was used to verify CSP packet exchange over CAN, GNSS communication, command execution and communication between the spacecraft and ground-side test equipment.

01 OBC ↔ Communication Board

02 CSP packet transfer over CAN

03 OBC ↔ OEM7 GNSS receiver

04 CLI command & diagnostic testing

05 Ground-station beacon communication

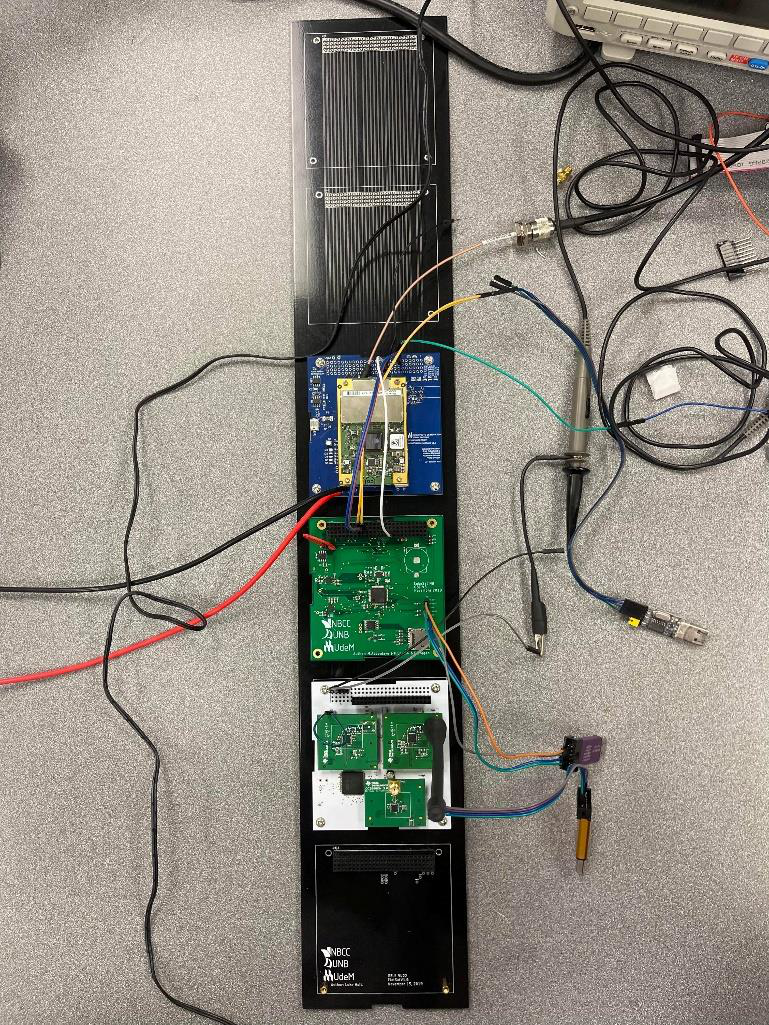

CubeSat FlatSat integration test platform — FlatSat configuration used to integrate and test the OBC, communication board and OEM7 carrier board. Source: Doctoral thesis, Figure 3.11.

TECHNOLOGIES

Engineering Stack

Embedded

STM32 · C/C++ · Firmware

Real-Time

FreeRTOS · Tasks · Synchronization

Communication

CAN · Embedded Interfaces

Engineering

Hardware Integration · Testing · Debugging · Validation

RESEARCH & PUBLICATIONS

Published Engineering Work

IEEE · 2022

Flight Software Development for a CubeSat Application

Research describing the architecture and development of flight software for the CubeSat application.

IEEE · 2023

On-Board Computer and Testing Platform for CubeSat Development

Engineering work covering the on-board computer and supporting test platform used during CubeSat development.
